GLP-TDS-100 Clamp on Type Ultrasonic Flow Meter








GLP-TDS-100F1 wall mounted

                        (standard)

GLP-TDS-100F2 wall mounted


     (explosion-proof type )

GLP-TDS-100F3  Fixed plate type

GLP-TDS-100Y  Integrated type


   I: features

                  1、GLP-TDS-100F1 wall mounted(standard)ultrasonic flow meter

u Display: English or Chinese ( changeable )

u  Compact structure, strong, international advanced die-casting aluminum chassis

u Weight:2.5Kg

u With heat display function(optional)

u Voltage : AC220VDC24V (optional )

2、GLP-TDS-100F2 wall mounted(explosion-proof type )ultrasonic flow meter

u Display: English or Chinese ( changeable )

u Compact structure, strong, international advanced die-casting aluminum chassis

u Weight:7Kg

u Explosion proof : dⅡBT4

u With heat display function(optional)

u Voltage : AC220VDC24V (optional )

             3、GLP-TDS-100F3  Fixed plate type ultrasonic flow meter

u Display: English or Chinese ( changeable )

u Conform to the national standard of the chassisPlane frame size 80×160mm

u Weight: 2Kg

u With heat display function(optional)

u Voltage : AC220VDC24V (optional )

                 4GLP-TDS-100Y  Integrated type ultrasonic flow meter

u Display: English or Chinese ( changeable )

u Magnetic type buttons window operations

u With heat display function(optional)

u Data is not lost without electricity for 100000 hours

u Voltage : AC220VDC24V (optional )

   II:Basic technical parameters:

 1、Host

u Accuracy better than 1%, the repeatability of 0.5%

u measurement cycle500 ms2 times per second, 128 groups of data per cycle

u backlit LCD and display instantaneous flow and cumulative amount at the same time, the instantaneous heat and

        accumulative total quantity of heat, velocity, time and other data

u output : 4~20mA or 0~20mAimpedance : 0~1Kaccuracy: 0.1%

u It can measure the heat or changeable from flow rate to heat.

u It can record before 512 days and 128 month in automatically, also the positive/negative/net cumulative flow in the

        first 10 years.

u It can record before 30 times calls and interruption time flow rate automatically, also can fill quantity by manual and

        automatically, reducing the loss of user traffic, also can be read through the Modbus protocol.

u It can program batch (quantitative) controller, fault self-diagnosis function.

u It can implement software upgrade by transmitted via E-mail to the code file.

u Communication protocolModbus protocolM-Bus protocolFuJI and compatible with the domestic similar products of

        other manufacturers communication protocol.

u Signal inputthree road 4 ~ 20 ma analog input, accuracy  0.1%, it can input pressure, liquid level, temperature signal; Two

        way three-wire system PT100 platinum resistance, it can display instantaneous and accumulation of heat

u Outputone road insolated RS485 output, one road 4~20mA or 0~20mA outputone way isolation OCT(pulse width

        between 6 ~ 1000 ms programmable, 200 ms) by default, a relay output


      2. Special cable

u  SEYV75-2 block type can be extended to 500 meters in single, at the same time, pay attention not to parallel with high

    voltage cable and avoid the frequency converter AFAP.

    3. Pipe

u Pipe materialsteel, stainless steel, cast iron, cement pipe, PVC, aluminum, copper, glass fiber reinforced plastic all quality

      of pipes, the lining is allowed.

u Pipe Diameter 15mm~6000mm

u Straight pipethe sensor installation points best satisfy the 10 D upstream, downstream 5 D, pump discharge from 30 D (D stand for the pipe diameter)

     4. Medium

                    u Typeit can support ultrasonic single homogeneous liquid , such as tap water, sea water, industrial sewage, various oil, acid alkali, alcohol, beer.

uTemperature0~160

uTurbidity:≤10000ppmand bubble content is small

uFlow rate 0~±64m/s

uFlow directionsBoth positive and reverse measurement and measurement net flows.



    5. Working temperature

u Host temperature-30~80

u Sensor temperature-40~160

u Host anti-corrosion gradeIP65

u Host humidity85%RH

u Sensor humidityit can work in immersion situationdepth of water3mprotectionIP68

    6. Power

      u AC85~264V  or  DC8~36V  or  AC7~30V

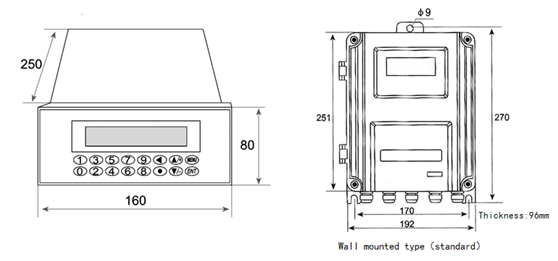

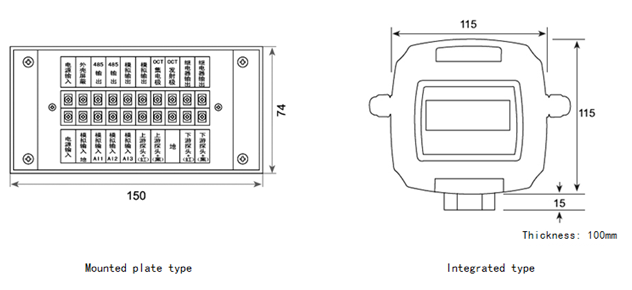

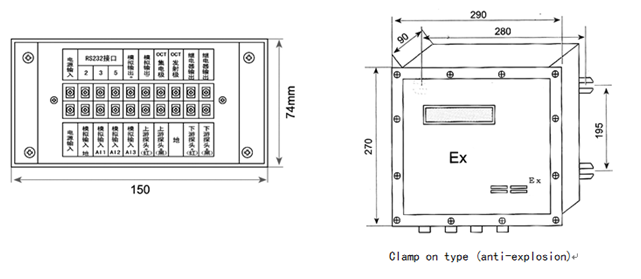

    7. size




  III、sensor ( optional )

      1、wall mounted type sensor




Standard S1 small sensors(magnetic)

u Pipe: DN15~DN100

uLiquid temperature : 0~160℃

Standard M1 middle sensors(magnetic)

u Pipe: DN50~DN700

uLiquid temperature : 0~160℃

Standard L1 large sensors(magnetic)

u Pipe: DN300~DN6000

uLiquid temperature : 0~160℃


      2.insertion type sensor


Standard insertion B type

                 (vertically insertion)

Insertion C type

(Slanting insertion)



Extended inserting type B


     (cement works)


     3, standard pipe sensors

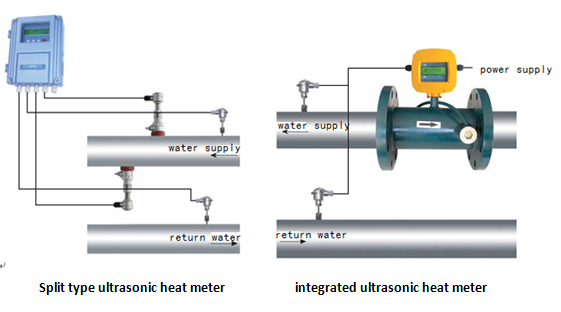

     4 、ultrasonic heat meter
