DEVIATION OF ULTRASONIC LEVEL METER
..
|
|
| Deviation of ultrasonic level meter host | Deviation of ultrasonic level meter |
I、OVERVIEW
◇24VDC\220VAC the power supply
◇Digital installation assistant analysis
◇The LCD display, and keystrokes
◇Simulation settings or site settings
◇Remove the false measurement
◇RS485 output
◇The standard output is 4-20mA
◇Piezoelectric wave rushed security protection
II、MAIN TECHNICAL PARAMETERS
Range | 0~30m |
Accuracy | ±0.25%F.S，±0.5F.S |
Resolution ratio | ≥10m,5mm ＜10m,1mm |
Beam angle | <10@3dB |
Frequency | ~40KHZ |
Dead zone | 0.3-0.7m |
Voltage | 24VDC \220VAC |
Output | 4~20mA、six way programmable control 、communication |
Display | LCDchinese backlight display、botton |
Temperature compensation | chips inside \ sensor compensation |
Environment Temperature | -20~+60℃ |
Process temperature | -30~+80℃ |
Process pressure | 0.5-2BAR |
Installation connection | M66X3 |
Process connection | PG13.5 |
Shell material | ABS\PA6 GF30 |
Protection grade | IP66 |
Weight | probe 1.1KG、host 1KG |

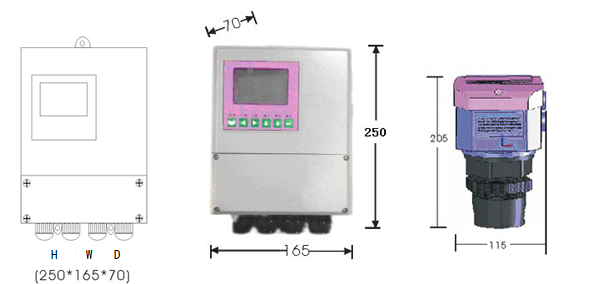

III、SIZE CHART（unit：mm）
![S2$89}E29I)TB9E_{X]LS`T.png](/en/Uploads/ueditor/image/20170511/59144b02e9e59.png "59144b02e9e59.png")

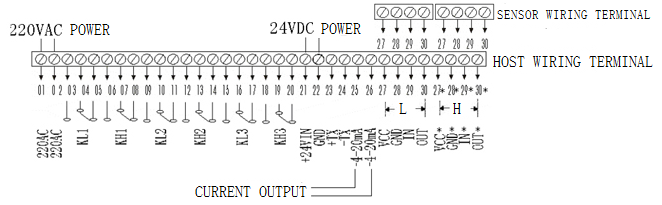

IV、INSTRUMENT WIRING DIAGRAM
